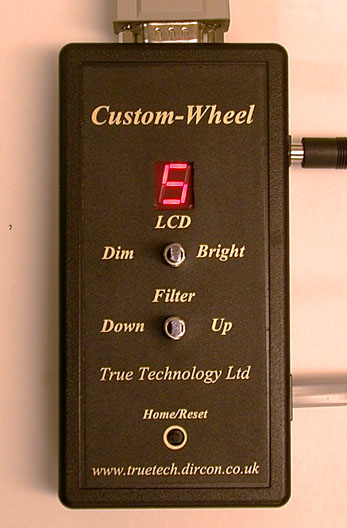

Hand-Unit showing filter position, UP/DOWN toggle and BRIGHT/DIM toggle. At the bottom is a HOME/RESET push-button. On pressing this a wheel will auto-learn the wheeltype installed, finishing in the HOME (filter No 1) position. At
top, connector (9-D-F) is for the Custom-Wheel cable, at TOP RIGHT is the input power connector
(via 2.1mm jack, 12v dc @ 500ma), and at lower right is the RJ6/4 socket for serial pc control. Pin-out for the RJ/PC serial interface adapter.
