B
'C' Mount lenses and Accessories
A
B
A. Fujinon fish-eye lens (manual iris/focus/zoom) - for ALL SKY video 1.4mm - 3.1 mm f/1.4
UK Price 140
B. Image taken with above. * Despite the light polution (see how dark the trees are !!) the Milky Way through Cassiopeia and Cygnus region shows up amazingly well, including the dark regions around Deneb. The square of Pegasus is at the bottom, and M31, the Andromeda galaxy, can be clearly seen. Above the W of Cassiopeia is Polaris and to the left of this there is a short trail of a passing satellite.
* Remember, ALL images shown are FRAME GRABS from videos recorded to tape.
C.
D.
C. 75mm f/1.4 lens, manual iris and focus.
FIELD OF VIEW- Degrees
Vertical x Degrees Horizontal by Degrees Diagonal ie. 61.93 V x
77.32 H x 90.00 D
|
LENS |
ASTROVID
STELLACAMS (EX), ASTROVID 2000, ASTROVID COLOR PRO C |
ASTROVID
PLANETCAM |
PRICE |
|
75 MM F/1.4 L-V7514 |
3.67
X 4.89 X 6.11 |
2.16
H x 2.74 H |
|
D. This is a cropped image of the region around M31 using the 75mm lens. The satellite galaxies M32 and M110 show up well, and from a dark sky site the dust lanes of M31 would look phenomenal when replayed on a large monitor or TV screen.
WIDE ANGLE LENSES

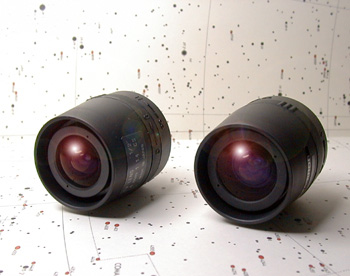

The lenses above are from left to right 4 mm
F.1.4 , and 6 mm F/1.4
FIELD OF VIEWS- Degrees
Vertical x Degrees Horizontal by Degrees Diagonal ie. 61.93 V x
77.32 H x 90.00 D
|
LENS |
STELLACAMS
(EX), ASTROVID 2000, AND ASTROVID COLOR PROS |
ASTROVID
PLANETCAM |
PRICE |
|
4mm
F/1.4 L-12FM04T |
61.93
x 77.32 x 90.00 |
36.5
V x 43.30 H |
65.00 |
|
6mm
F/1.4 L-12FM06T |
43.60
x 56.15 x 67.38 |
25.72
V x 31.44 H |
58.00 |
SLIGHTLY WIDE TO
SLIGHTLY TELEPHOTO

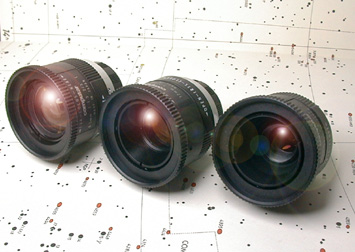

The lenses from left to right are 7.5mm
F/1.4 , 12 mm F/1.2 Meteor Catcher , 16mm F.1.4
FIELD OF VIEWS- Degrees
Vertical x Degrees Horizontal by Degrees Diagonal ie. 61.93 V x
77.32 H x 90.00 D
|
LENS |
STELLACAMS
(EX), ASTROVID 2000,ASTROVID COLOR PROS |
ASTROVID
PLANETCAM |
PRICE |
|
8.5
MM F/1.3 L-M8513 |
35.49
X 46.21 X 56.15 |
20.04
V x 25.88 H |
75.00 |
|
12 MM
F/1.2 H-1212F1 |
22.62
X 29.86 X 36.87 |
13.35
V x 16.72 H |
60.00 |
|
16MM
F/1.4 L-M1614W |
17.06
X 22.62 X 28.07 |
10.06
V x 12.66 H |
70.00 |
SPECIALIZED LENSES
- LARGE FORMAT WIDE ANGLE and TELEPHOTO
LENSES
the lenses incorporate larger elements and
are precisely corrected across the field of view.

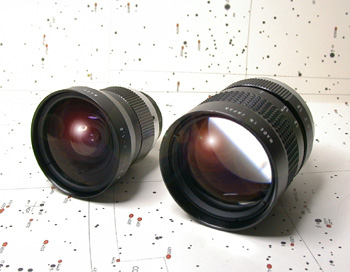

The lenses from left to right are 4.8mm
F/1.8 and 50mm F/1.3
FIELD OF VIEWS-
Degrees Vertical x Degrees Horizontal by
Degrees Diagonal ie. 61.93 V x 77.32 H x 90.00 D
|
LENS |
ASTROVID
STELLACAMS (EX), ASTROVID 2000,ASTROVID COLOR PROS |
ASTROVID
PLANETCAM |
PRICE |
|
25 MM
F/1.3 L-V2513 |
10.97
X 14.59 X 18.18 |
6.47
V x 8.17 H |
105.00 |
|
50 MM
50 F/1.3 L-V5013 |
5.5
X 7.32 X 9.15 |
3.24
V x 4.10 H |
144.00 |
